2025 Ford Bronco Sport® near Burton, OH
The 2025 Ford Bronco Sport® is a 5-door, 5-passenger sport utility vehicle built on a unibody construction. Manufactured at the Hermosillo Stamping & Assembly Plant in Mexico, it offers multiple trims including Big Bend™, Outer Banks™, Badlands™, Heritage, and Free Wheeling™. This model focuses on delivering practical off-road capability combined with advanced powertrain options and technology features tailored to meet a variety of driving needs.
Engine Performance and Powertrain Configuration
The 2025 Ford Bronco Sport® offers two EcoBoost® engine options distinguished by displacement and output. The first engine is a 1.5-liter inline 3-cylinder unit constructed with an aluminum block and head, featuring dual overhead camshafts with twin independent variable cam timing. This engine produces 180 horsepower and 200 pound-feet of torque. It uses gasoline turbocharged direct injection and includes Auto-Start Technology to optimize fuel efficiency.The second engine available in the Badlands trim and with Sasquatch® Packages is a 2.0-liter inline 4-cylinder unit, also constructed with an aluminum block and head but incorporating a forged steel crankshaft for increased durability. This engine delivers 250 horsepower and 280 pound-feet of torque. It employs both gasoline turbocharged direct injection and port fuel injection, and features Auto Start-Stop Technology. The recommended fuel is 91 octane or higher, although it can operate on a minimum of 87 octane.
Both powertrains use an 8-speed automatic transmission. The 2.0-liter engine model is equipped with SelectShift technology, including manual shifting mode and paddle shifters, as well as an oil cooler to maintain transmission performance under strenuous conditions.
The vehicle’s drivetrain configuration varies with trim levels. The 1.5-liter models feature a 4x4 system with an air-cooled power transfer unit, a disconnectable driveshaft, and a single clutch rear drive unit. The Badlands and Sasquatch® models have a water-cooled power transfer unit and a dual clutch rear drive unit with differential lock capability. The Sasquatch® package adds 4WD lock and enhanced traction control features for off-road scenarios.
Design Innovations Focused on Capability
The 2025 Ford Bronco Sport® maintains dimensions designed to balance interior space and off-road utility. The wheelbase is set at 105.1 inches, providing a stable platform. Vehicle length ranges from 173.1 to 175.1 inches depending on the trim and optional equipment. Ground clearance varies between 7.8 and 8.8 inches on models with the 1.5-liter engine and extends up to 8.7 inches on the 2.0-liter Badlands trims. Approach angles vary, reaching a maximum of 31.2 degrees for the Badlands Sasquatch®, allowing the vehicle to navigate steep inclines. Departure angles go up to 27.9 degrees, while the ramp breakover angle reaches 21.7 degrees.
Suspension systems include an independent MacPherson® strut front setup with coil springs, stabilizer bars, and twin-tube hydraulic gas-pressurized dampers, supported by a steel subframe with aluminum lower control arms. The rear suspension features independent double lateral link semi-trailing arms with coil springs, a stabilizer bar, and monotube hydraulic gas-pressurized dampers with an isolated steel subframe. The Badlands Sasquatch® Package adds Bilstein® position-sensitive dampers for improved handling on rough terrain.
Wheel sizes range from 17x7 to 18x7 inches, fitted with all-terrain tires from Continental and Goodyear depending on the trim. Full-size spare tires are standard on most configurations, ensuring readiness for extended use.
Technology Integrations for Connectivity and Control
The 2025 Ford Bronco Sport® incorporates Ford’s SYNC4 infotainment system displayed on a 13.2-inch LCD touchscreen. The system supports voice commands and pinch-to-zoom navigation. SiriusXM® Traffic and Travel Link® provide live updates for routes and conditions. Connectivity options include USB A and C ports in the front media bin, two charging ports in the Bring Your Own Device bin, and USB-C charging in the second row. Wireless phone charging and available 110V/400W power outlets in the cargo area and second row are offered for added convenience.

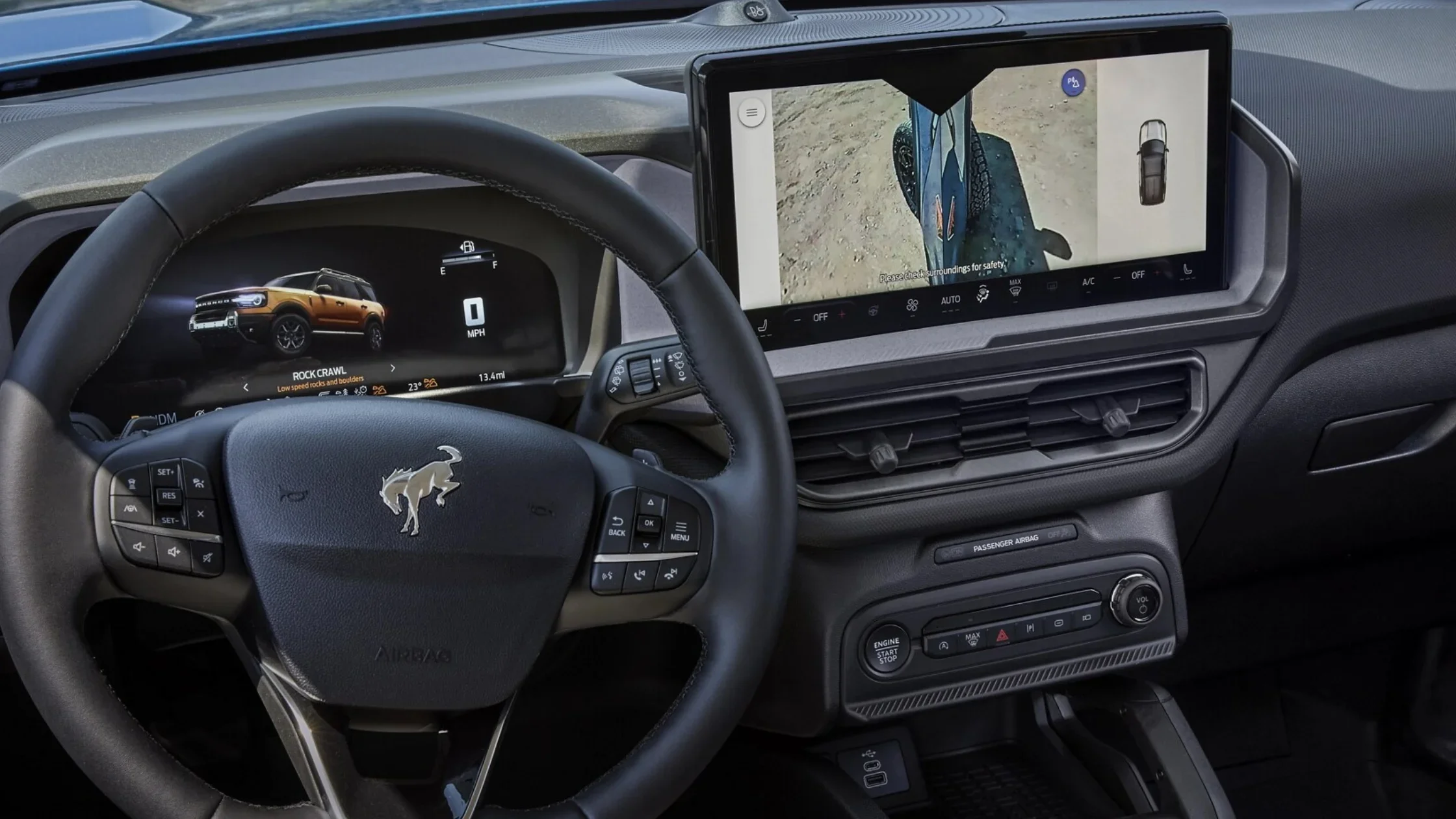

The instrument panel features a fully digital 12.3-inch LCD display customizable to show off-road information such as pitch, roll, and compass heading. Optional features include a split-view 360-degree camera system and off-road data screens that provide real-time terrain feedback.
Audio options include a six-speaker system as standard, with an available Bang & Olufsen® sound system comprising 10 speakers and a subwoofer for enhanced audio clarity.
Ford’s G.O.A.T. Modes™ terrain management system allows selection among Normal, ECO, Sport, Slippery, and Off-Road drive modes for the 1.5-liter models. The 2.0-liter Badlands trims add Rally and Rock Crawl modes to adjust traction and control for specific off-road conditions. Trail Control™ with Trail 1-Pedal Drive is an option that regulates throttle and braking to simplify low-speed trail driving.
Safety Systems Designed for Driver Assistance and Collision Mitigation
The 2025 Ford Bronco Sport® is equipped with the Ford Co-Pilot360™ Assist+ suite as standard across trims. This includes Auto High Beam headlamps that automatically adjust for oncoming traffic and BLIS® (Blind Spot Information System) with Cross-Traffic Alert to detect vehicles in blind spots or approaching from the rear while reversing. The Lane-Keeping System monitors lane position and provides lane-keeping assist, alerts, and driver attention monitoring.Pre-Collision Assist integrates Automatic Emergency Braking with pedestrian detection, forward collision warning, and dynamic brake support to reduce accident risk. A rearview camera with parking sensors aids in parking maneuvers.
Adaptive Cruise Control with Stop-and-Go and Lane Centering is standard on higher trims, enabling the vehicle to maintain safe following distances and keep centered in its lane during highway driving. Evasive Steering Assist supports driver control during emergency maneuvers. Rear Cross Traffic Braking applies brakes automatically if an obstacle is detected when backing out. Additional safety features available on select models include front parking sensors, Reverse Brake Assist, and a 360-degree camera with split view for improved visibility around the vehicle.
Performance Metrics and Capabilities
The 2025 Ford Bronco Sport® weighs between 3,458 and 3,849 pounds depending on configuration. Payload capacity ranges from 912 to 934 pounds, reflecting its capability to carry gear and passengers. Trailer towing capacity reaches up to 2,700 pounds in the Badlands trim with the 2.0-liter engine.The vehicle’s water fording depth is rated at 17.7 inches for standard 1.5-liter models and increases to 23.6 inches for the 2.0-liter Badlands variants. This capability allows the vehicle to navigate streams and shallow water crossings within these limits.
The crawl ratio for the 2025 Ford Bronco Sport® is 18:1, enabling precise control at low speeds during technical off-road maneuvers. Braking components include 308mm x 27mm vented disc brakes on the front and 302mm x 11mm disc brakes on the rear, both equipped with anti-lock braking systems. Badlands trims feature thicker brake plates for improved heat dissipation.
Steering is electric power-assisted with unique tuning for various drive modes to enhance driver control both on and off-road.
