2024 F-150® Lightning near Middlefield, OH
The 2024 Ford F-150® Lightning represents a direct advancement in electric truck engineering. Built using a high-strength steel frame paired with a military-grade aluminum alloy body and bed, this model delivers structural durability designed for high utility. Its SuperCrew® four-door configuration with a 5.5-foot bed combines established truck proportions with modern electric innovation. Final assembly takes place at the Ford Rouge Electric Vehicle Center, demonstrating a focus on precision manufacturing and U.S.-based production.
Powertrain Architecture and Motor Configuration
The 2024 Ford F-150® Lightning features a dual eMotor layout that utilizes two inboard, three-phase fixed magnet AC motors mounted transversely at the front and rear. This configuration supports full-time four-wheel drive capability. In the standard-range configuration, the 2024 Ford F-150® Lightning produces a targeted peak of 452 horsepower (337 kW) and 775 lb.-ft. of torque (1050 Nm). With the extended-range battery system, total output rises to 580 horsepower (433 kW) while torque remains consistent at 775 lb.-ft. Both configurations are designed for high power efficiency and sustained performance under load. Each motor assembly is produced at the Van Dyke Transmission Plant in the United States, integrating domestic and international components for reliability and uniform performance.
Battery Design and Energy Management
Battery technology is central to the operation of the 2024 Ford F-150® Lightning, with lithium-ion pouch cells arranged within a liquid-cooled housing for optimal temperature regulation. The standard-range battery holds 98 kWh of usable energy, while the extended-range battery increases capacity to 131 kWh. Each battery incorporates internal management software to maintain balance, control thermal performance, and optimize charge distribution. The battery packs are assembled at the Ford Rawsonville Components Plant using a precision-controlled process that ensures uniformity in energy storage and cooling performance.
Onboard charging systems vary between configurations. The standard-range battery includes an 11.3 kW onboard charger capable of 10.5 kW output, while the extended-range battery version is equipped with a 19.2 kW charger producing 17.6 kW output in fleet configurations. These systems are designed to maximize energy transfer efficiency, reduce charge times, and sustain long-term battery health.
Charging and Range Performance
Charging performance has been engineered for both convenience and consistency. On Level 3 DC Fast Charging at 150 kW or higher, the 2024 Ford F-150® Lightning can reach 80 percent charge from 15 percent in approximately 32 minutes with the standard-range battery and 38 minutes with the extended-range system. Level 2 charging with the 80A Ford Charge Station Pro provides a 15 to 100 percent charge in about 10 hours for the standard-range model and approximately 13 hours for the extended-range version. Using the 48A Ford Connected Charge Station, the same process requires roughly 10 to 13 hours depending on configuration. Charging through a 30A/240V mobile unit requires between 15 and 20 hours.
During a 10-minute DC Fast Charge session at 150 kW, the 2024 Ford F-150® Lightning can recover up to 62 miles of range with the standard-range battery or 65 miles with the extended-range battery. Charging for one hour using the Ford Connected Charge Station or the Charge Station Pro typically adds about 20 miles of driving distance, while the mobile charger provides approximately 13 miles per hour of charge. The EPA-estimated range is 240 miles for the standard-range battery and up to 320 miles for extended-range configurations such as the Flash™ and Lariat® models. The Platinum trim achieves an estimated 300 miles.
Disclaimer: **Range and charge time based on manufacturer computer engineering simulations, tested values, and EPA-estimated range calculation methodology. The charging rate decreases as battery reaches full capacity. Your results may vary based on peak charging times and battery state of charge. Actual range varies with conditions such as external environment, vehicle use, vehicle maintenance, high-voltage battery age, and state of health.
Precision in Dimensions and Structural Measurements
The 2024 Ford F-150® Lightning maintains proportions that reflect its full-size pickup heritage. Overall length measures 232.7 inches with a wheelbase of 145.5 inches. The truck’s width, excluding mirrors, is 80 inches, while the overall cab height reaches 78.3 inches. Approach and departure angles are measured at 24.3 and 24.0 degrees, respectively, with a ramp breakover angle of 17.6 degrees and ground clearance at 8.5 inches. The front trunk offers 14.1 cubic feet of storage space, complementing the cargo box volume of 52.8 cubic feet.

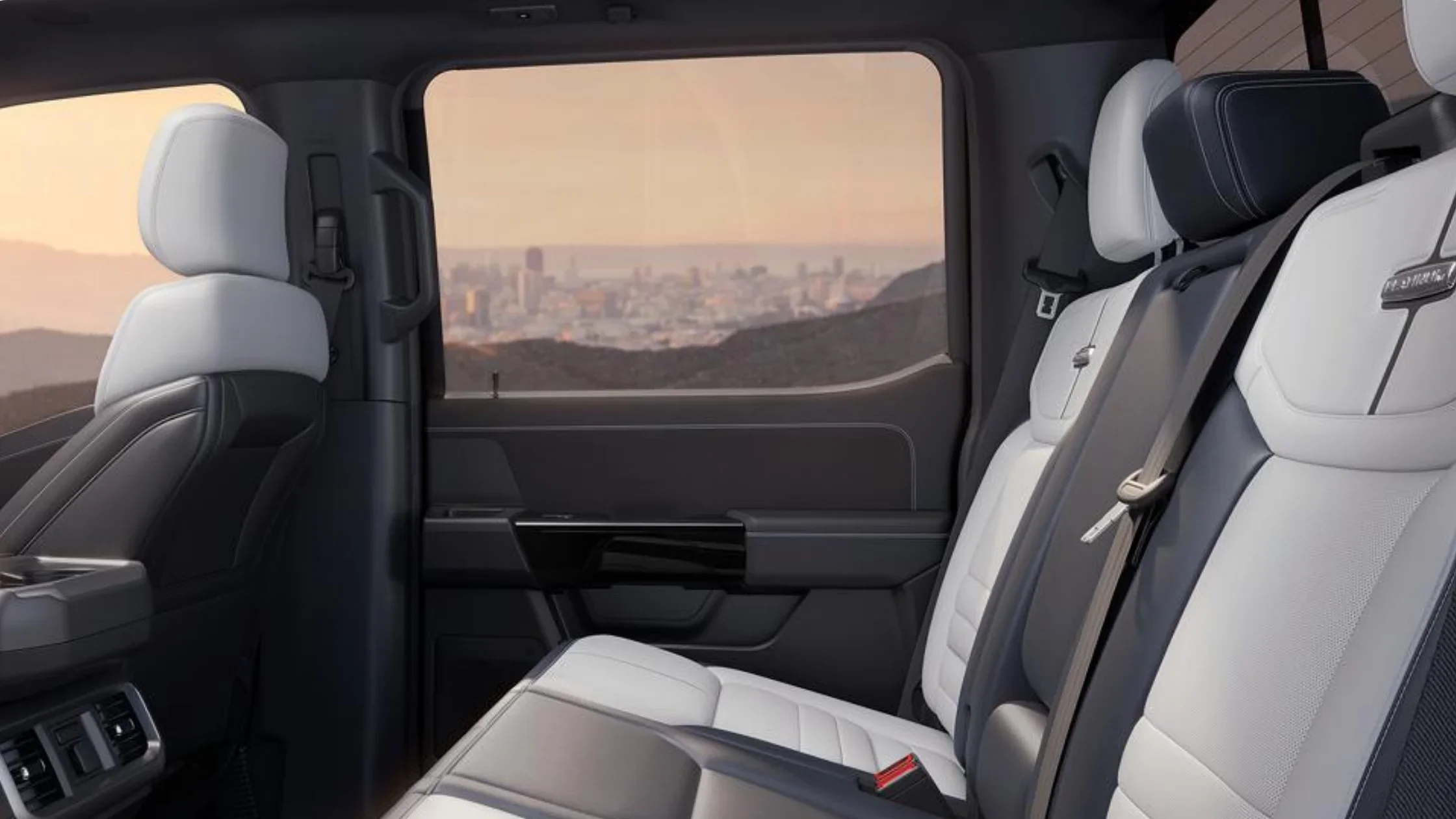

Interior dimensions provide room for five occupants. The front seating area offers 40.8 inches of headroom, 43.9 inches of maximum legroom, 66.7 inches of shoulder room, and 62.5 inches of hip room. Rear seat passengers receive 40.4 inches of headroom, 43.6 inches of maximum legroom, 66.0 inches of shoulder room, and 62.6 inches of hip room. These figures indicate consistent interior balance and functional space utilization throughout the cabin.
Capability and Towing Engineering
The electric drivetrain and reinforced chassis of the 2024 Ford F-150® Lightning allow significant towing and payload performance. In its standard-range configuration, the truck supports a maximum payload of 2,235 pounds. The extended-range version offers a maximum payload capacity of 1,913 pounds. Maximum towing capacity begins at 5,000 pounds for the standard-range system and extends to 7,700 pounds with towing configurations. When equipped with the Max Trailer Tow Package, the extended-range Flash™ and Lariat® trims reach 10,000 pounds of towing capability, while the Platinum configuration achieves 8,500 pounds.
These figures are dependent on vehicle configuration, passenger load, and accessories. Ford engineers have calibrated the suspension systems for strength and balance under varying load conditions. The front suspension uses an independent double-wishbone layout with coil-over shocks, a stabilizer bar, and heavy-duty gas-pressurized monotube shocks. The rear suspension employs independent semi-trailing arms with coil springs, a stabilizer bar, and twin-tube gas-pressurized shocks for steady handling and reduced vibration during towing or off-pavement use.
Exterior Design and Lighting Systems

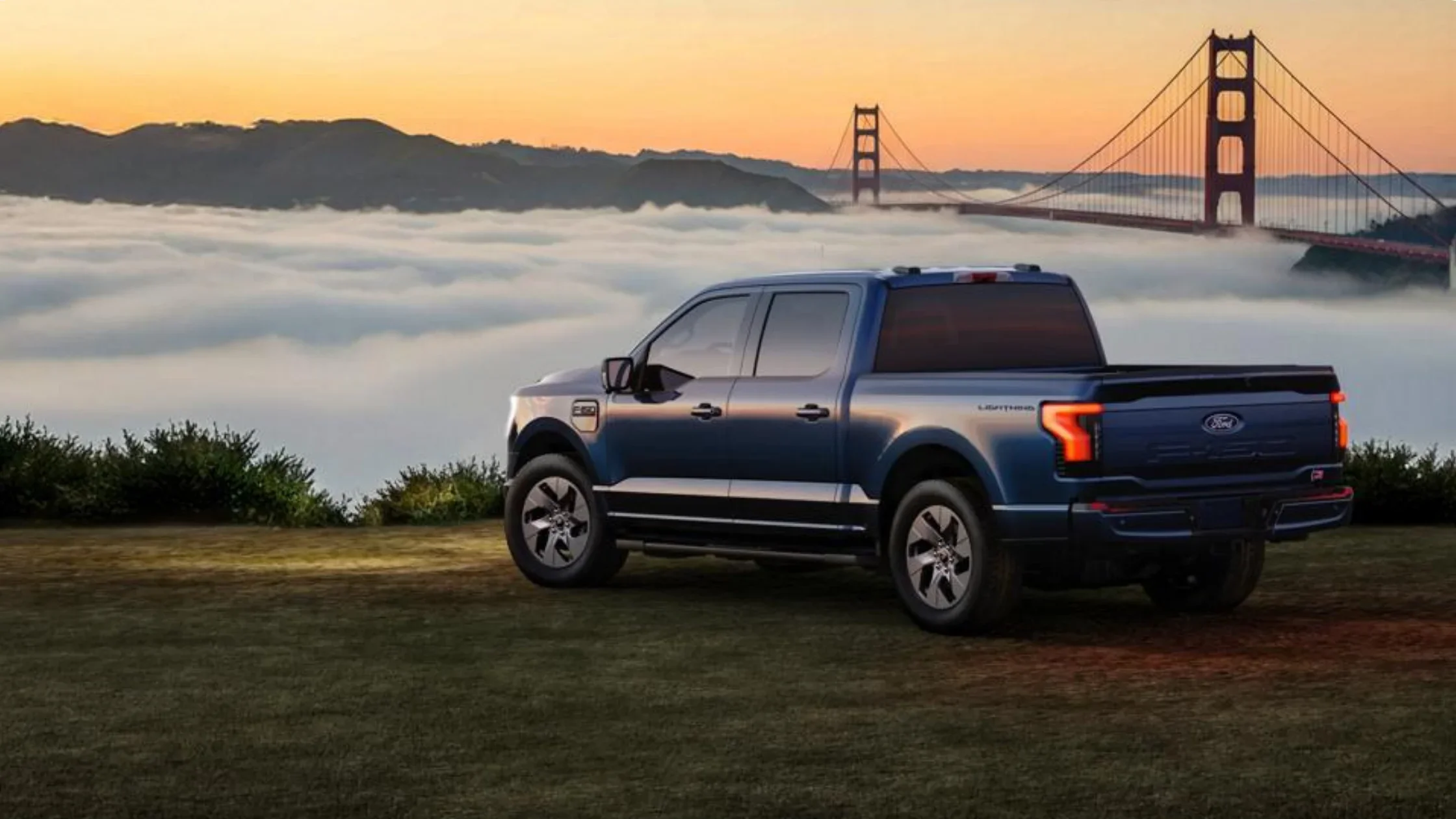

The exterior integrates functionality with precision detailing. Standard across all trims are LED projector headlamps featuring dynamic bending and signature lighting, paired with LED taillamps. Higher trims include signature front and tailgate light bars along with LED box lighting and Enhanced Zone Lighting. The standard 18-inch machined aluminum wheels with black high-gloss pockets are replaced on upper trims with 20- or 22-inch designs in Dark Carbonized Gray, bright machined aluminum, or matte black finishes. Carbon Black fixed running boards are standard across most trims, and power-deployable versions are available on select configurations.
Interior Systems and Driver Technology

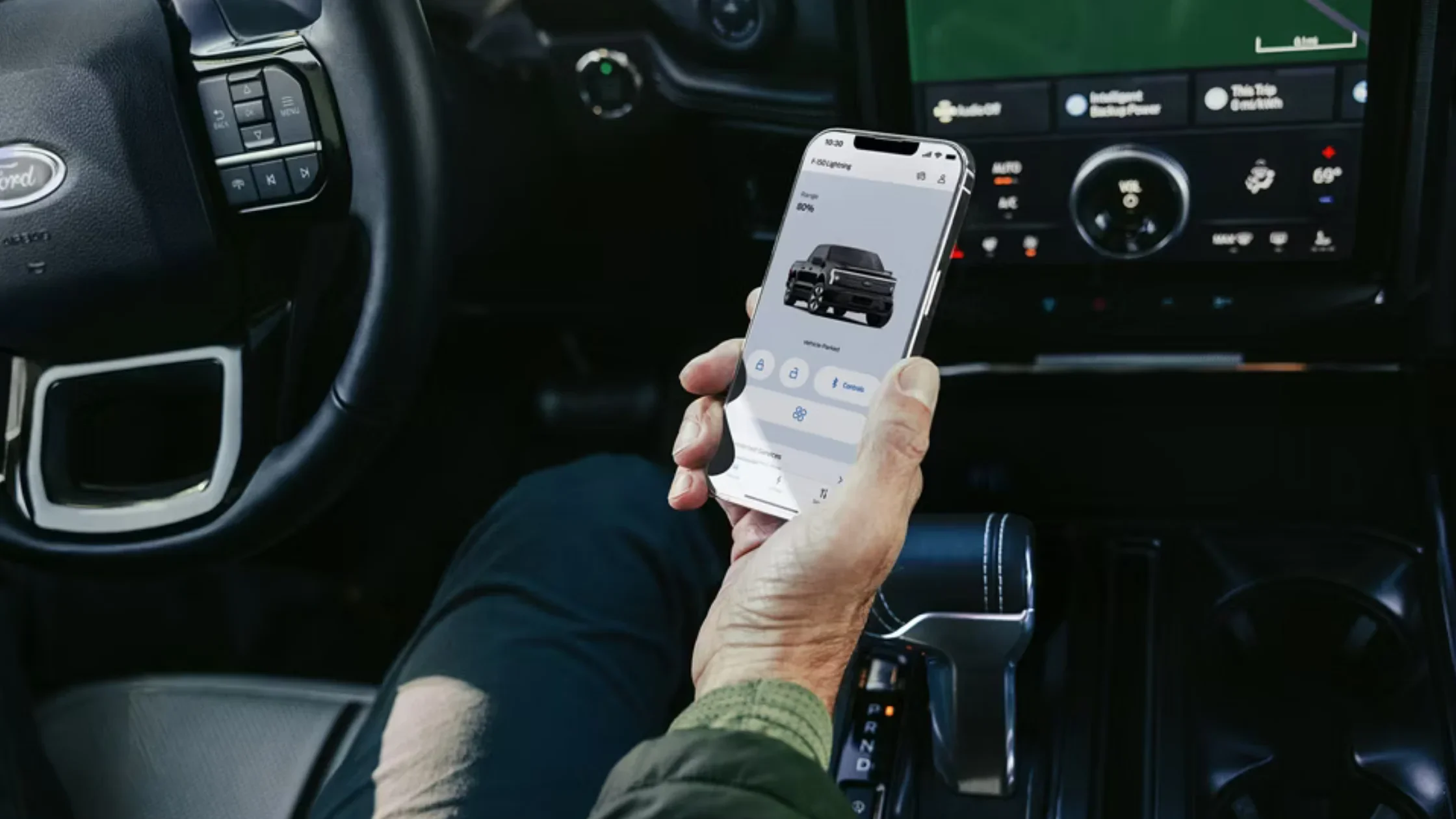

Interior systems are centered around the brand’s SYNC® technology platform. The SYNC® 4 system features a 12-inch landscape touchscreen, while SYNC® 4A includes a 15.5-inch portrait display with Enhanced Voice Recognition. Both systems support Wireless Apple CarPlay® and Android Auto™ connectivity. A 12-inch Digital Productivity Screen presents vehicle performance data, while the available Connected Built-In Navigation system offers a three-year trial period for turn-by-turn and traffic-guided mapping. Over-the-air software updates ensure continuous functionality improvements without requiring dealership visits.
FordPass® Connect provides Wi-Fi hotspot capability for up to ten devices. Intelligent Access, push-button start, and available 360-degree camera coverage support simplified vehicle management. Select trims include Phone As A Key functionality for added convenience.
Audio options include the B&O® Sound System by Bang & Olufsen® with eight speakers and subwoofer or the B&O® Unleashed Sound System with fourteen speakers and HD Radio™. Interior seating options range from durable vinyl and heated cloth to ActiveX-trimmed and premium Nirvana leather materials. Heated and ventilated front seats, multi-adjustable passenger seating, and driver memory settings are available depending on trim level.
Safety and Driver Assistance Engineering
All 2024 Ford F-150® Lightning trims are equipped with Ford Co-Pilot360™ 2.0, a suite of driver-assist features that includes Pre-Collision Assist® with Automatic Emergency Braking, BLIS® with Cross-Traffic Alert and Trailer Coverage, Lane-Keeping System with Alert and Aid, Reverse Sensing System, Reverse Brake Assist, and Post-Collision Braking. Higher trims incorporate Ford Co-Pilot360™ Assist 2.0, which adds Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centering, Speed Sign Recognition, Evasive Steering Assist, and Intersection Assist.
Ford BlueCruise® hands-free highway driving technology is available on select trims and operates in designated Hands-Free Blue Zones. The system provides lane monitoring and speed control when conditions allow, helping to reduce fatigue on extended drives while maintaining driver supervision requirements.
Additional safety features include AdvanceTrac® with Roll Stability Control™, a full array of airbags with Safety Canopy® side-curtain coverage, Curve Control, SOS Post-Crash Alert System, and Tire Pressure Monitoring. Security systems such as a perimeter alarm, SecuriCode® keyless entry keypad, and FordPass® Trailer Theft Alert contribute to comprehensive vehicle protection.
Power Integration and Onboard Productivity
The design of the 2024 Ford F-150® Lightning includes integrated power outlets and charging capability for external equipment. The 2.4 kW Pro Power Onboard™ system provides 120V outlets located in the cab, bed, and front trunk. The available 9.6 kW Pro Power Onboard™ option expands this with additional 120 V outlets and a 240 V bed-mounted outlet for higher-demand tools and devices. This configuration supports professional and recreational needs by allowing the truck to function as a portable power unit.
Additional functional features include the Tailgate Work Surface, integrated step, and Class IV trailer hitch standard on all trims. Interior work surfaces and flexible storage systems enhance usability for mobile operations or jobsite management.
